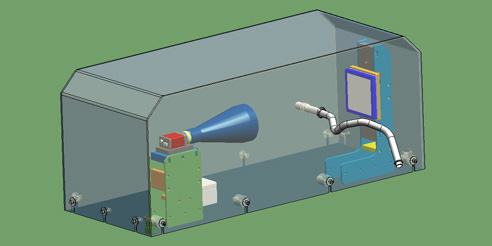

TubeInspector is a non-touch measuring system for 100% in-line inspection and control of formed tubes. It can be fully integrated in automatic  manufacturing processes according to the operations to be made (endforming or bending). All measures, stored and statistically analysed, generate a report of  the manufacturing process including  Cp and CpK values as well.
TubeInspector is equipped with a proprietary dedicated software designed to inspect tubes with an accuracy of    ±0,01mm.  Components that are out of the required tolerance are automatically ejected. Easy and user friendly programming does not require skilled personnel.
By this way parts compliance is guaranteed without requiring expensive traditional jigs.

TubeInspector is available in three versions:

Type 1: TBINSP 20
Measuring range: 25 x 34 mm

Type 2: TBINSP 40
Measuring range: 44 x 60 mm

Type 3: TBINSP 90
Measuring range: 100 x 136 mm
