| Automatic saw for short brass tube |
|
|
| |

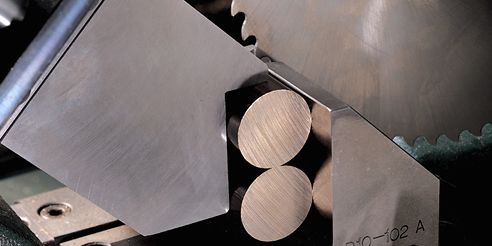

Precision automatic saw for short brass tube and solid bar (single or twin)
CM601 is an automatic saw for medium and short brass tube and solid bar (single or twin) equipped with CNC control.
All adjustments are fast and centralised.
Cutting operations are fully automatic and programmable: loading, pre-loading, cutting and unloading in two alternative positions.
Cutting capacity is up to O.D. 102mm or O.D. 70 x 70mm (single bar configuration) and up to O.D. 35mm (twin bar configuration) for a maximum length of 800mm.
A new advanced loading system continuously controls each bar which is never in a free fall and is deposited in the feed zone without scratches or surface damages. Loaders are available for bars, for bundles of tubes and for inclined planes, in various lengths.
Main features of automatic saw:
- Single bar configuration up to O.D. 102mm - twin bar configuration up to O.D. 35mm
- Heavy duty frame structure and cutting head
- Extremely high precision in length, therefore in weigth
- Very high productivity
- Reduced scrap (using thin blades and a special cutting cycle)
|
|
|
|
