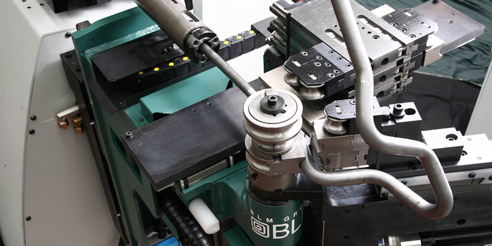

Fully electric in-process right and left bending machine, with 3D graphic visual programming
DYNAM0-ELE LR150 is a fully electric in-process right and left bending machine, with loading and unloading system for tubes with OD 25 mm
FEATURES:
- right and left bending sense
- in-built automatic loading und unloading facility
- increased productivity (up to 30% compared to hydro-electric bender)
- fully electric bending machine
- clamp,die, pressare die, bendino radium ch'ange are all programmable CNC brushless driver axis
- bending up to 4 different radii with fixed and variable radius
- very cost effective
- easy to use
- fixed and variable bending radius with boost bending facilities
- 8 axis, 7 of which electric with brushless motors
- Highly innovative 3D Graphic Programming Software dramatically reducing dependence on operator skills
- real time bend simulation automatically selecting the shortest and most efficient bending cycle to minimise cycle time and reduce cost
- component simulation and feasibility check highlighting any possible collisions
- immediate creation and execution of the machine program with twin data input
Dynamo-ele LR150 CNC bender is recommended for complex components, with different radii and tubes pre-assembled with fittings or endforming ect., generally in use within the automotive and climate control sectors. |
